Máy mài dạng thẳng



Xem tất cả...

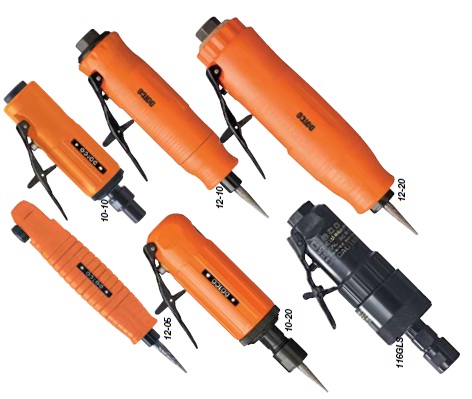

Inline Grinders

For Carbide Burrs, Mounted Points, Mounted Wheels

12,000 – 40,000 RPM
0.2 – 0.9 hp (0.15 – 0.67 kW)
■ Great for die and mold work, deburring
■ Aluminum, composite or rugged steel housings
■ Complete selection of rpm speeds available
■ Front, side, and rear exhaust models available
Model Number Free
Speed
rpm
Abrasives Capacity Type
Housing
Weight
kgs
Length
mm
Collet
Size
Air
Size
Inlet
Front Exhaust Side Exhaust Rear Exhaust
12-05 Series – 0.2 hp (0.15 kW) – with Collet Guard
12R0500-36     40,000 1/4” Carbide Burr, 7/8” Mtd. Wheel C 0.3 150 1/4” 1/8”
12-10 Series – 0.3 hp (0.22 kW) – 300 Series Collet
12L1001-36   12L1081-36+ 34,000 1/2” Carbide Burr, 1” Mtd. Wheel C 0.4 152 1/4” 1/4”
12L1000-36   12L1080-36▲+ 30,000 1/2” Carbide Burr, 1” Mtd. Wheel C 0.4 152 1/4” 1/4”
12L1003-36•   12L1082-36•+   1/2” Carbide Burr, 1” Mtd. Wheel C 0.4 152 1/4” 1/4”
12S1008-36•       1/2” Carbide Burr, 1” Mtd. Wheel C 0.4 152 1/4” 1/4”
10-10 Series – 0.3 hp (0.22 kW) – 300 Series Collet
10L1001-36▲   10L1081-36 34,000 1/2” Carbide Burr, 1” Mtd. Wheel A 0.3 117 1/4” 1/4”
10L1000-36▲   10L1080-36▲ 30,000 1/2” Carbide Burr, 1” Mtd. Wheel A 0.3 117 1/4” 1/4”
10L1003-36•   10L1082-36▲• 25,000 1/2” Carbide Burr, 1” Mtd. Wheel A 0.3 117 1/4” 1/4”
12-20 Series – 0.6 hp (0.45 kW) – 200 Series Collet
12L2000-01   12L2080- 01▲+ 25,000 3/4” Carbide Burr, 1.5” Mtd. Wheel C 0.6 175 1/4” 1/4”
12L2001-01•   12L2081-01• 20,000 3/4” Carbide Burr, 1.5” Mtd. Wheel C 0.6 175 1/4” 1/4”
12L2002-01•   12L2082-01• 18,000 3/4” Carbide Burr, 1.5” Mtd. Wheel C 0.6 175 1/4” 1/4”
10-20 Series – 0.6 hp (0.45 kW) – 200 Series Collet
10L2000-01▲   10L2080-01 25,000 3/4” Carbide Burr, 1.5” Mtd. Wheel A 0.6 147 1/4” 1/4”
116 Series – 0.6 hp (0.45 kW) – 200 Series Collet
116GLFB-250-C4     25,000 3/4” Carbide Burr S 0.8 160 1/4” 1/4”
  116GLSB-250-C4   25,000 3/4” Carbide Burr S 0.8 160 1/4” 1/4”
136 Series – 0.6 hp (0.45 kW) – 200 Series Collet
    136GLR-250-C4 25,000 1” Carbide Burr S 0.9 188 1/4” 1/4”
136GLF-250-C4     25,000 1” Carbide Burr S 0.9 173 1/4” 1/4”
  136GLS-240-C4   24,000 1” Carbide Burr S 0.9 173 1/4” 1/4”
    136GLR-180-C4 18,000 1” Carbide Burr A 0.9 188 1/4” 1/4”
31G Series – 0.6 hp (0.45 kW) – Universal Collet
31G-510   31GR-510 20,000* 3/4” Carbide Burr, 1.5” Mtd. Wheel S 0.7 173** 1/4” 1/4”
12-25 Series – 0.9 hp (0.67 kW) – 200 Series Collet
12L2500-01   12L2580-01+ 23,000 1” Carbide Burr, 1.5” Mtd. Wheel C 0.8 185 1/4” 1/4”
12L2502-01•   12L2582-01•+ 18,000 1” Carbide Burr, 1.5” Mtd. Wheel C 0.8 185 1/4” 1/4”
12L2562-01•   12L2542-01• 12,000* 1” Carbide Burr, 1.5” Mtd. Wheel C 0.8 188 1/4” 1/4”
10-25 Series – 0.9 hp (0.67 kW) – 200 Series Collet
10L2500-01   10L2580-01 23,000 1” Carbide Burr, 1.5” Mtd. Wheel A 0.6 159 1/4” 1/4”
10B2500-01     23,000 1” Carbide Burr, 1.5” Mtd. Wheel A 0.6 159 1/4” 1/4”
10L2502-01•     18,000 1” Carbide Burr, 1.5” Mtd. Wheel A 0.6 159 1/4” 1/4”
