Máy mài dạng thẳng, dài

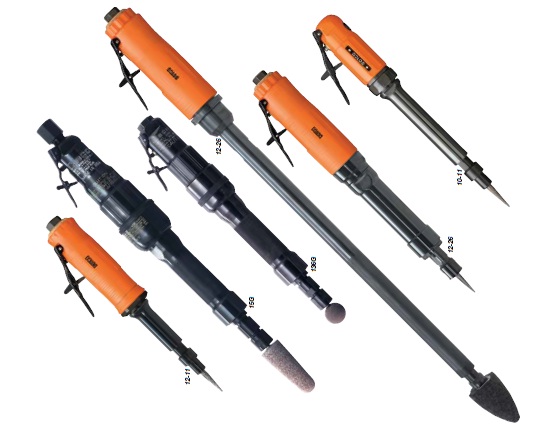

Inline Extended Grinders

For Carbide Burrs, Mounted Points, Mounted Wheels

18,000 – 28,000 RPM
0.3 – 1.2 hp (0.22 – 0.9 kW)
■ Extended housings
■ Aluminum, composite or rugged steel housings

Model Number			Free Speed rpm	Abrasives Capacity	Type Housing	Weight kgs	Length mm	Collet Size	Air Size Inlet
Front Exhaust	Side Exhaust	Rear Exhaust
Front Exhaust	Side Exhaust	Rear Exhaust
12-11 Series - 0.3 hp (0.22 kW) - 3” (76mm) Extension - 300 Series Collet
12L1101-36		12L1181-36	28,000	1/2” Carbide Burr, 1” Mtd. Wheel	C	0.6	277	1/4”	1/4”
12L1112-36•			25,000	1/2” Carbide Burr, 1” Mtd. Wheel	C	0.6	277	1/4”	1/4”
10-11 Series - 0.3 hp (0.22 kW) - 5” (127mm) Extension - 300 Series Collet
10L1101-36		10L1181-36	28,000	1/2” Carbide Burr, 1” Mtd. Wheel	A	0.5	248	1/4”	1/4”
10L1112-36▲			25,000	1/2” Carbide Burr, 1” Mtd. Wheel	A	0.5	248	1/4”	1/4”
136 Series – 0.8 hp (0.6 kW) – 200 Series Collet
	136GEL-240-C4		24,000	1” Carbide Burr, 2” Mtd. Wheel	S	1.6	315	1/4”	1/4”
12-26 Series - 0.9 hp (0.67 kW) - 5” (127mm) Extension - 200 Series Collet
	12L2600-01		22,000	1” Carbide Burr, 1.5” Mtd. Wheel	C	1.3	328	1/4”	1/4”
		12L2682-01•	18,000	1” Carbide Burr, 1.5” Mtd. Wheel	C	1.3	328	1/4”	1/4”
12-26 Series – 0.9 hp (0.67 kW) – Multiple Extension - 300 Series Collet
		12S2674-2A•	18,000	3/4” Carbide Burr, 1.5” Mtd. Wheel	C	1.9	597	1/4”	1/4”
15 Series – 1.2 hp (0.9 kW) – 200 Series Collet – Governed
	15GELC-180-C4		18,000*	1.25” Carbide Burr, 2” Mtd. Wheel	S	2.0	368	1/4”	3/8”
